SPECIFICATION DYNA SCREW AIR COMPRESSOR

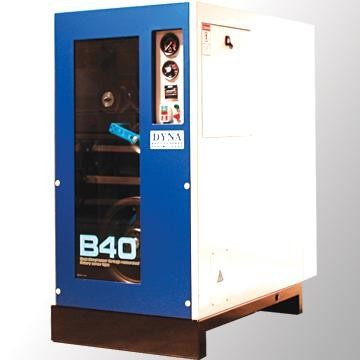

Model Number : B40 (5-10HP)
Key Features
Highly-anticipated Air compressor manufacturers.
Air compressor manufacturers
We are the top manufacturer specializing in producing many kinds of air compressor products, all of which are well and high quality control.
we are among the most reliable air compressor manufacturers in taiwan. As a toair compressor manufacturers,air compressor manufacturer,air compressor
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 5HP~10HP 3.7kW~7.5kW
04. Working Pressure : 5~13 Bar
05. Dimension(mm) : L1000 x W600 x H1150
06. Cooling Form : Air cooled
07. Transmission : V-Belt
08. Noise Level : 64 dB(a) front 1m measured
09. Aerosol Oil Content : 1~2 ppm
10. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
11. Smooth operation. Easy to maintenamce,
design 24hr operation.
12. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break off protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.

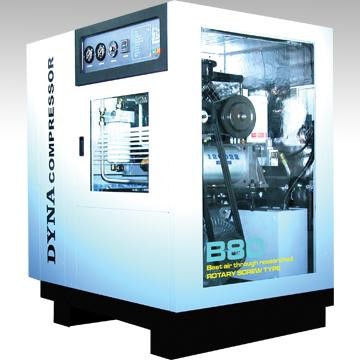

Model Number : B80 (15-20HP)
Key Features
Outstanding Air compressor manufacturers.
Taiwan air compressor manufacturers.
We are a professional Taiwan manufacturer specializing in manufacturing various kinds of air compressor products, all of which are top-quality and at competitive price.
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 15HP~20HP 11kW~15kW
04. Working Pressure : 5~13 Bar
05. Dimension(mm) : L1185 x W895 x H1280
06. Cooling Form : Air cooled
07. Transmission : V-Belt
08. Noise Level : 67 dB(a) front 1m measured
09. Aerosol Oil Content : 1~2 ppm
10. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
11. Smooth operation. Easy to maintenamce,
design 24hr operation.
12. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break off protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.
Model Number : B90 (20-25HP)
Key Features
We will always strive to insist the quality of the products, and that’s why we are one of the top manufacturers in Taiwan.
Taiwan air compressor exporters
We are a leading Taiwan exporters providing many kinds of air compressor products, and we have continuously offered innovative products to meet the changing market demands.
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 20HP~25HP 15kW~18kW
04. Working Pressure : 5~13 Bar
05. Dimension(mm) : L1185 x W895 x H1280
06. Cooling Form : Air cooled
07. Transmission : V-Belt
08. Noise Level : 67 dB(a) front 1m measured
09. Aerosol Oil Content : 1~2 ppm
10. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
11. Smooth operation. Easy to maintenamce,
design 24hr operation.
12. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break off protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.

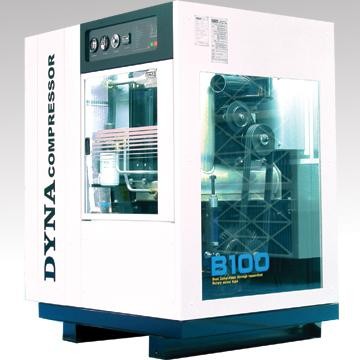

Model Number : B100 (25-30HP)
Key Features
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 25HP~30HP 18kW~22kW
04. Working Pressure : 5~13 Bar
05. Dimension(mm) : L1290 x W1030 x H1535
06. Cooling Form : Air cooled
07. Transmission : V-Belt
08. Noise Level : 69 dB(a) front 1m measured
09. Aerosol Oil Content : 1~3 ppm
10. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
11. Smooth operation. Easy to maintenamce,
design 24hr operation.
12. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break off protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.

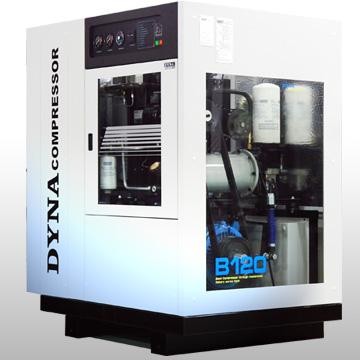

Model Number : B120 (30-40 HP)
Key Features
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 30HP~40HP 22kW~30kW
04. Working Pressure : 5~13 Bar
05. Specification Detailed >>
06. Dimension(mm) : L1290 x W1030 x H1535
07. Cooling Form : Air cooled
08. Transmission : V-Belt
09. Noise Level : 69 dB(a) front 1m measured
10. Aerosol Oil Content : 1~3 ppm
11. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
12. Smooth operation. Easy to maintenamce,
design 24hr operation.
13. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break off protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.

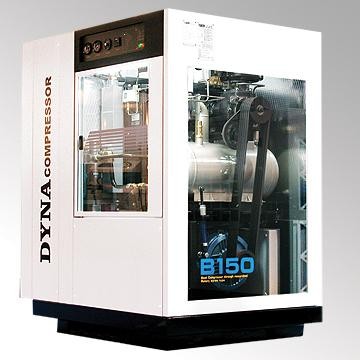

Model Number: B150 (40-60 HP)
Key Features
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 40HP~60HP 30kW~45kW
04. Working Pressure : 5~13 Bar
05. Dimension(mm) : L1360 x W1030 x H1795
06. Cooling Form : Air cooled
07. Transmission : V-Belt
08. Noise Level : 72 dB(a) front 1m measured
09. Aerosol Oil Content : 1~2 ppm
10. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
11. Smooth operation. Easy to maintenamce,
design 24hr operation.
12. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break o ff protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.

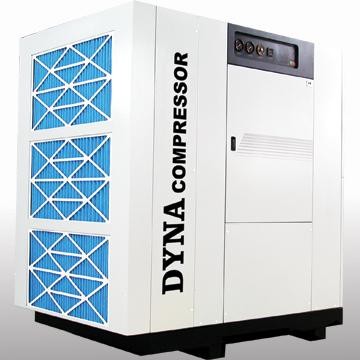

Number Model : B200 (75HP)
Key Features
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 75HP 55kW
04. Working Pressure : 5~13 Bar
05. Dimension(mm) : L1690 x W1100 x H1850
06. Cooling Form : Air cooled
07. Transmission : V-Belt
08. Noise Level : 77 dB(a) front 1m measured
09. Aerosol Oil Content : 1~2 ppm
10. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
11. Smooth operation. Easy to maintenamce,
design 24hr operation.
12. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break off protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.

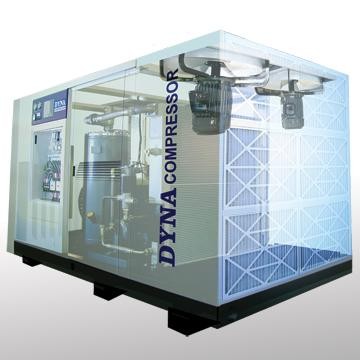

Model Number : B300 (150/175HP)
Key Features
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 150HP~175HP 110kW~132kW
04. Working Pressure : 5~13 Bar
05. Dimension(mm) : L3150 x W1650 x H1845
06. Cooling Form : Air cooled
07. Transmission : V-Belt
08. Noise Level : 83 dB(a) front 1m measured
09. Aerosol Oil Content : 1~2 ppm
10. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
11. Smooth operation. Easy to maintenamce,
design 24hr operation.
12. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break off protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.

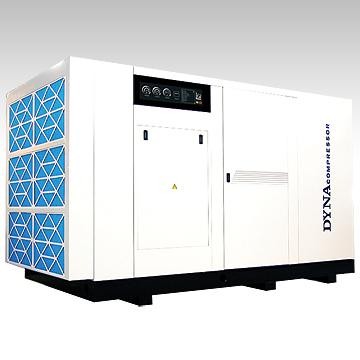

Model Number : B350 (200HP)
Key Features
01. Style : Profile air end screw type
02. Operating Voltage : AC220V, AC380V, AC440V
and special specification for custom-made.
350Hz~60Hz
03. Power Rangel : 200HP 148kW
04. Working Pressure : 5~13 Bar
05. Dimension(mm) : L3200 x W1650 x H1930
06. Cooling Form : Air cooled
07. Transmission : V-Belt
08. Noise Level : 83 dB(a) front 1m measured
09. Aerosol Oil Content : 1~2 ppm
10. Powder-coated sound endosure and cabinet
inlet filter is standard of all models. amti vibration
pads. special foundation and provide quiet.
11. Smooth operation. Easy to maintenamce,
design 24hr operation.
12. Safety Device : Motor overload protection,
reverse-phase protection, high temperature
break off protection, high voltage leak protection,
supply interruption pressure on protection, and
power on protection.
